Battery Energy Storage Systems
500kW & 300kW
Use Stored Power
To Charge EVs
On and Off
Grid use
Remote
Monitoring
Power Outage
Protection

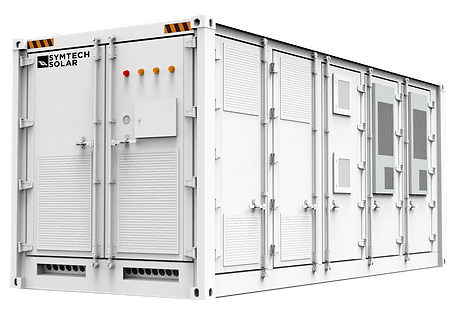

SYMTECH MEGATRON BESS 300 & 500kW
The MEGATRON 300 and 500kW Battery Energy Storage Systems have been created to be an install-ready and cost-effective small to medium energy storage system.
These units can come with an optional STS (Static Transfer Switch), allowing your BESS unit to near instantly and automatically supply you with power in the case of a power cut. If you want your system to be able to be used in the case of a power outage, then this is a vital element, not commonly seen on larger units like these. Of course, if your plans are all grid-tied and there is no need for power backup, then these can be supplied without the STS.
​
Both the 300kW & the 500kW enclosures have optional PV MPPT input making it easier and quicker to complete your renewable energy project. Multiple functionality modes allow simple switching between grid, PV, or genset enabling better user control and stability.
​
These units come with the latest and best-in-the-market battery chemistry technology, with Lithium Iron Phosphate (LiFePO4) batteries. Systems connected at high voltage come with 5000 cycle warranty and up to 90% DOD (Depth of Discharge) @ 0.5C 25℃
Installed In or Out
Safe to be installed inside or outside. The units' design can withstand the UK weather!
On & Off Grid
Optional transfer switch available on these units, allowing instant back up
Store Solar Energy
Save your clean energy for when you need it. Reduce wasted opportunities
Common Applications
Microgrid Projects
Business’s & Factories
Shopping & Distribution Centers
Offices Buildings
Schools and Libraries
Island communities
Alongside renewable energy
EV Stations
What Size do you need?
Know you need a 100kW battery system, but unsure whether thats 100kW invertor or 100kW capacity?
​
Contact us to discuss your needs and we can talk through what size would make sense for you.
​
Features
01.
Full Back Up Power
(Auto Switching)
02.
Fire Suppression System
03.
Lithium Iron Phosphate (LiFePO4) Battery Packs
04.
Noise <75dB
05.
Solar, Grid, & Generator Connection Ready
Each system includes
Each BESS solution is pre-engineered and manufactured to be ready to install.
​
Each BESS includes:
-
Battery Racks & Wiring (LFP)
-
BESS Controller with Battery Management System (BMS)
-
High Voltage Units
-
300 or 500kW Power Conversion System (PCS) (DC/AC)
-
Transformer (option without available)
-
Optional 600kW STS (Static Transfer Switch)
-
HVAC System
-
Fire Suppression System
-
Installation Manuals, Certificates, Usage Guide, etc
Need something a little bigger? Check out our 1.2MW unit
MEGATRON 300kW / 645kWh
PCS - Power Output = 300kW
Battery Capacity = 645kW
Run time at full-load = 2 hours
MPPT = 200kW (optional)
STS Optional - Included as standard
PCS = DC/AC
MEGATRON 500kW / 1075kWh
PCS - Power Output = 500kW
Battery Capacity = 1075kW
Run time at full-load = 2 hours
MPPT = 400kW (optional)
STS Optional - Included as standard
PCS = DC/AC
MEGATRON 500kW / 1104kWh
PCS - Power Output = 500kW
Battery Capacity = 1104kW
Run time at full-load = 2 hours
MPPT = 500+kW (optional)
STS not available
PCS = DC/AC
Interested? Contact Us for more information
Proud to Supply Symtech Solar BESS Products
iPower Generation Ltd are the Official Distributors and Partners for the UK, Eire & Channel Islands
